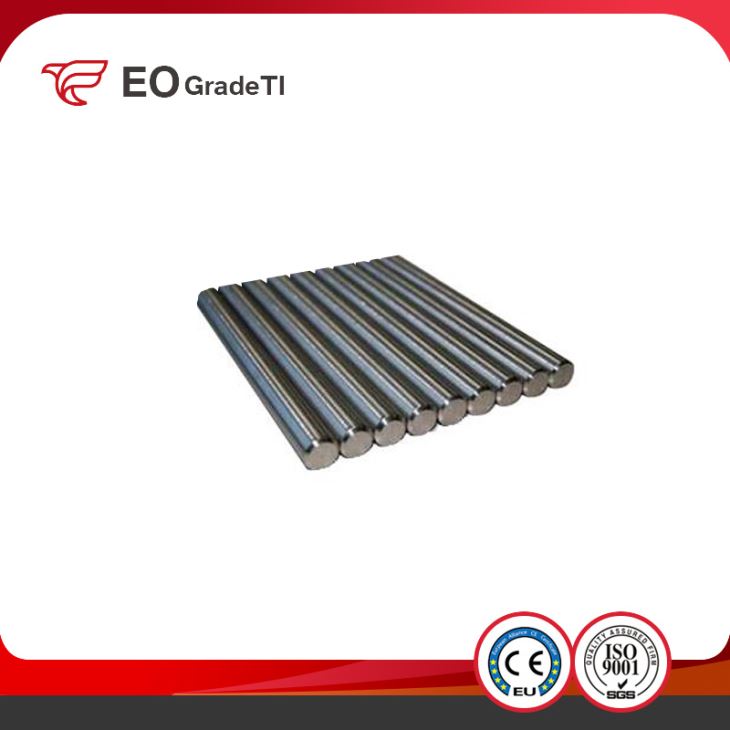

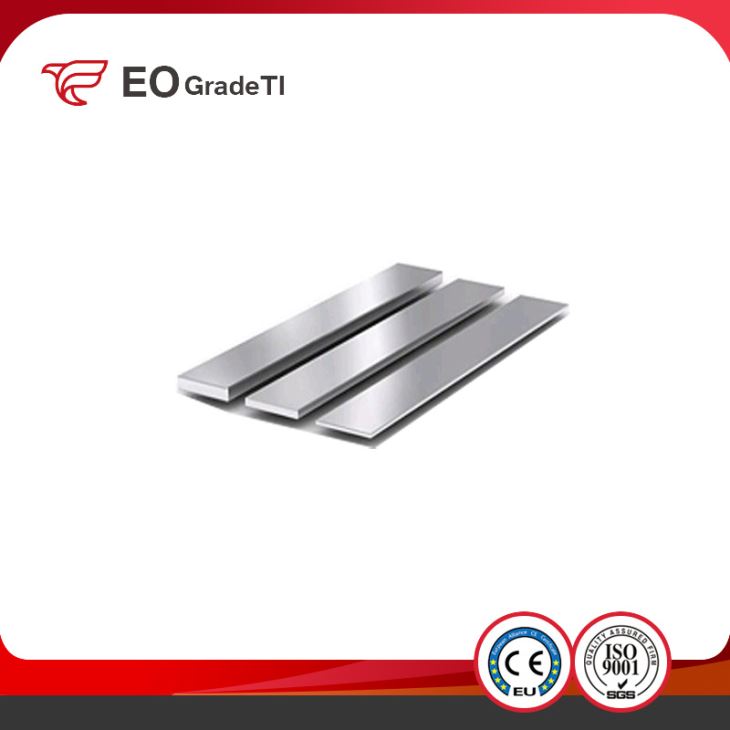

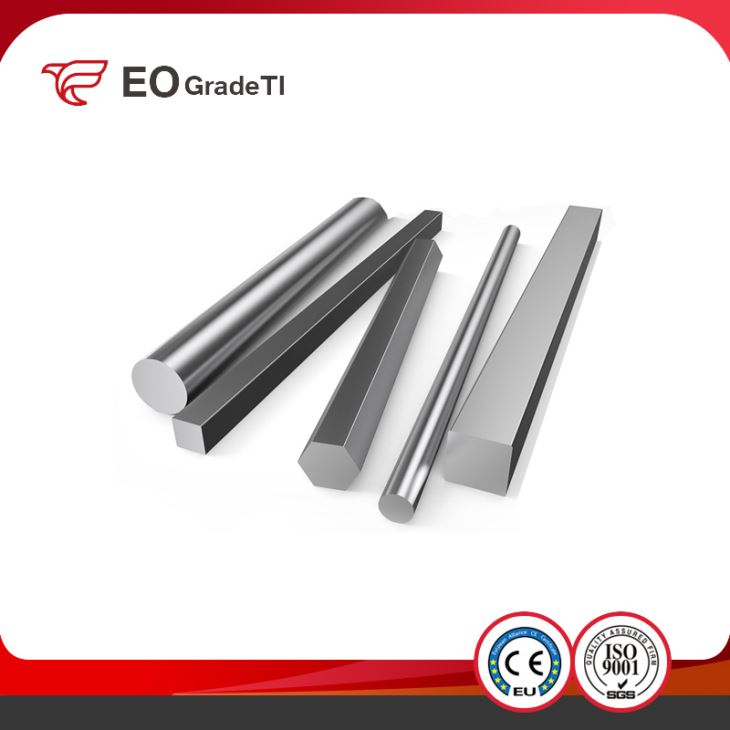

Grade 12 Titanium Bar

Product: Grade 12 Titanium Bar
Grade: Grade 12
Standard: ASTM B348, ASTM F136, ASTM F67
Types: Titanium Alloy Bars
Production Process: Forging, Rotary Forging, Extruding, Rolling, Drawing
Production Methods: Forging Machining, Hot Rolling, Machining
Detection Mode: We can according to customer's need to do the the ray testing, coloring, Magnetic particle testing, hydrostatic testing
Supply States: Annealed (M)
MOQ: 10 Kg
Payment Method: T/T, L/C, Paypal, Western Union

Product Details

Product Detail

Grade 12 Titanium Bar Chemical Composition

Grade

N

C

H

Fe

O

Al

V

Pa

Mo

Ni

Ti

GR 12

0.03

0.08

0.015

0.30

0.25

/

/

/

0.2~0.4

0.6~0.9

bal

Grade 12 Titanium Bar Physical Properties

Grade

State

Tensile Strength(min)

Yield Strength(min)

Elongation (%)

Ksi

MPa

Ksi

MPa

GR 12

(M)Annealed

70

438

50

345

18

Grade 12 Titanium Bar Production Specification

Dimensions(mm)

Tolerance(mm)

Ovality(mm)

6.35-7.94

±0.13

0.20

7.94-11.11

±0.15

0.23

11.11-15.88

±0.18

0.25

15.88-22.22

±0.20

0.30

22.22-25.40

±0.23

0.33

25.40-28.58

±0.25

0.38

28.58-31.75

±0.28

0.41

31.75-34.92

±0.30

0.46

34.92-38.10

±0.36

0.53

38.10-50.80

±0.46

0.58

50.80-63.50

+0.79,-0

0.58

63.50-88.90

+1.19,-0

0.89

88.90-114.30

+1.59,-0

1.17

Product Description

Titanium Alloy Grade 12 has outstanding corrosion resistance and a combination of high strength and low density, with good ductility. Small additions of nickel and molybdenum have been made to this alloy resulting increase in corrosion resistance and high strength.It is particularly suitable for use in mildly reducing conditions, or where conditions vary from oxidizing to reducing. It is particularly resistant to crevice corrosion in hot brines.


Grade 12 Titanium Bar Corrosion Resistance:

Titanium alloys are usually used in Australia for their excellent corrosion resistance, especially to chloride solutions. The small additions of nickel and molybdenum to grade 12 titanium give a more corrosion resistant metal than the commercial purity grade 2 alloy, with a marked increase in strength.

The overall corrosion resistance of this grade is not as good as the palladium alloyed lean grade 7, except for resistance to crevice corrosion in hot chloride solutions. Titanium has excellent resistance to general corrosion, with loss rates of less than 0.04mm/year being typical. The Austral Wright Metals Product Data Sheet “Corrosion of Titanium and Titanium Alloys” or your local office should be consulted more details.


Product Application

Grade 12 Titanium Sheet Application:

Many of the applications of grade 12 titanium are in the chemical industries. The common uses in Australia are in chemical processing, where titanium grade 12 is used for reactor autoclaves, piping and fittings, valves, heat exchanges and condensers.
