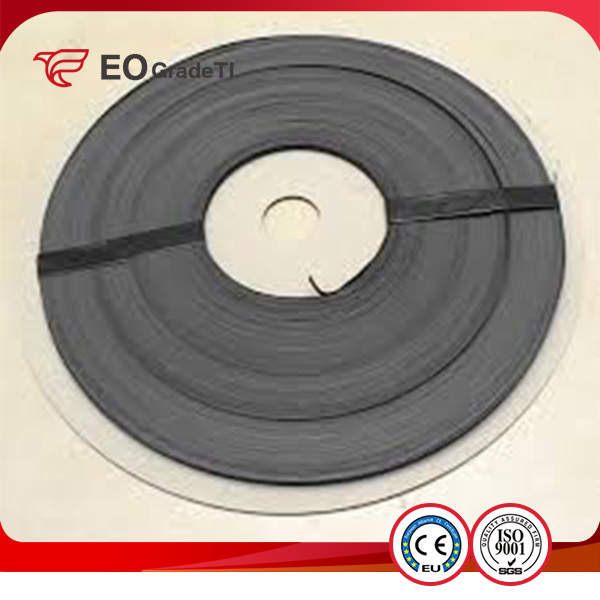

MMO Ribbon Anode

Product Name:MMO Ribbon Anode
Standard: ASME, ASTM, EN, UNS, GB, DIN, JIS
Certification: ISO, CE, ROHS
Payment Terms: T/T, L/C, Paypal, Western Union

Product Details

Product Details

MMO Ribbon Anode are composed of titanium ribbon substrate coated with a mixed metal oxide catalyst. The anodes can achieve 50 years operating lifespan in a current density of 17mA/m.

The mixed metal oxide anodes are designed for protecting the bottoms of many large-scale storage tanks. They can be used in sands with various levels of moisture and salt contents without any carbon filling materials.

MMO meshes or ribbons were welded together by metal titanium current distribution member as impressed-current anodes in storage tanks’ bottoms for cathodic protection system.


MMO Ribbon Anode Chemical Composition:

Substrate

Catalyst

ASTM B265Gr1 or Gr2

Mixed Metal Oxide

Parameter:

Width (mm)

Thickness (mm)

Length (m)

Current Output (mA/m)

Expected Life (Year)

6.35

0.635

152/155

17

50

6.35

0.635

152/155

43

50

12.7

0.635

152/155

86

50

Product Description

MMO Ribbon Anode Advantages:

Lightweight – 100 feet of the 1/4”(6.35mm) ribbon weighs slightly more than 1lb;
Ductile – composite materials eliminate problems with breakage of brittle materials such as graphite and silicon iron;
Dimensional stability eliminates issues associated with connection seals;
Compatible with a wide range of cathodic protection media (water, coke, seawater, brackish water);
Superior corrosion resistance compared to graphite, silicon iron, and other alternative materials;
Conveniently cut and welded in the field to suit various geometries;
Durable;
Even current distribution;
Chemical corrosion resistance;
Low system electrical resistance.


Product Application

MMO Ribbon Anode Application:

Reinforced concrete structures;
Buried steel structures;
Underground and above ground storage tanks;
Buried pipelines;

Working Environment:
Including soil, fresh water, brackish water, and seawater.

Installation Diagram:


EO Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) EO Standard
2) Customization


Our Service

You will have your reply as quickly as possible within 24 working hours
We provide free sample
Guarantee Quality and Quantity
We arrange delivery as soon as possible
There are preferential policies for long-term customers
Customized service is available
Excellent customer service policies on repair/exchange/refund
