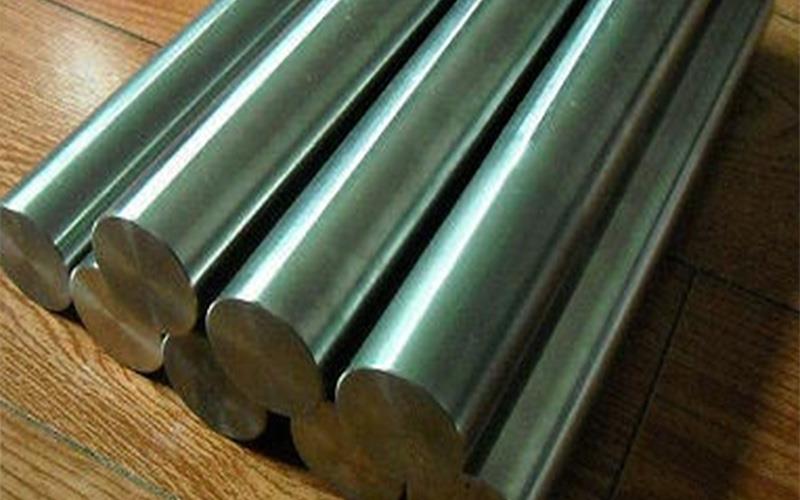

ASTM F136 Titanium Alloy Bar

Product: ASTM F136 Titanium Alloy Bar
Grade: Grade 1, Grade 2, Grade 5, Grade 7, Grade 9, Grade 12
Standard: ASTM F136
Types: Titanium alloy Bars
Production Process: Forging, Rotary Forging, Extruding, Rolling, Drawing
Production Methods: Forging Machining, Hot Rolling, Machining
Detection Mode: We can according to customer's need to do the the ray testing, coloring, Magnetic particle testing, hydrostatic testing
Supply States: Annealed (M)
MOQ: 10 Kg
Payment Method: T/T, L/C, Paypal, Western Union

Product Details

Product Detail

ASTM F136 Titanium Alloy Bar Chemical Composition

Grade

N

C

H

Fe

O

Al

V

Pa

Mo

Ni

Ti

GR 1

0.03

0.08

0.015

0.20

0.18

/

/

/

/

/


GR 2

0.03

0.08

0.015

0.30

0.25

/

/

/

/

/


GR 5

0.05

0.08

0.015

0.40

0.20

5.5~6.75

3.5~4.5

/

/

/


GR 7

0.03

0.08

0.015

0.30

0.25

/

/

0.12~0.25

/

/


GR 9

0.03

0.08

0.015

0.25

0.15

2.5~3.5

2.0~3.0

/

/

/


GR 12

0.03

0.08

0.125

0.30

0.25

/

/

/

0.2~0.4

0.6~0.9

bal

ASTM F136 Titanium Alloy Bar Physical Properties

Grade

State

Tensile Strength(min)

Yield Strength(min)

Elongation (%)

Ksi

MPa

Ksi

MPa

GR 1

(M)Annealed

35

240

20

138

24

GR 2

(M)Annealed

50

345

40

275

20

GR 5

(M)Annealed

130

895

120

828

10

GR 7

(M)Annealed

50

345

40

275

20

GR 9

(M)Annealed

90

620

70

438

15

GR 12

(M)Annealed

70

438

50

345

18

ASTM F136 Titanium Alloy Bar Production Specification

Dimensions(mm)

Tolerance(mm)

Ovality(mm)

6.35-7.94

±0.13

0.20

7.94-11.11

±0.15

0.23

11.11-15.88

±0.18

0.25

15.88-22.22

±0.20

0.30

22.22-25.40

±0.23

0.33

25.40-28.58

±0.25

0.38

28.58-31.75

±0.28

0.41

31.75-34.92

±0.30

0.46

34.92-38.10

±0.36

0.53

38.10-50.80

±0.46

0.58

50.80-63.50

+0.79,-0

0.58

63.50-88.90

+1.19,-0

0.89

88.90-114.30

+1.59,-0

1.17


Product Description

ASTM F136 Titanium Alloy Bar Features:

Low density and high strength
Exceptional corrosion resistance
Excellent elevated temperature properties
Excellent bearing to cryogenic property
Essentially nonmagnetic
Nontoxic, non-allergenic and fully biocompatible
Good thermal properties
Low modulus of elasticity
Low thermal expansion coefficient
High melting point
Excellent aesthetic qualities
Environment-friendly


Product Application

ASTM F136 Titanium Alloy Bar Application:

Electrode materials, fasteners, medical field, surgical implants, chemical industry, structural parts, glasses, aerospace and marine, consumer and architectural, jewelry and nuclear waste storage.


Packing:

1. Packed with wooden case
2. Cardboard case
3. According to the requirements of customers

Shipment type:

1. Sea Freight
2. Air Cargo
3. Express delivery
4. Land Transportation


Our Service

You will have your reply as quickly as possible within 24 working hours
We provide free sample
Guarantee Quality and Quantity
We arrange delivery as soon as possible
There are preferential policies for long-term customers
Customized service is available

Excellent customer service policies on repair/exchange/refund
